General Information

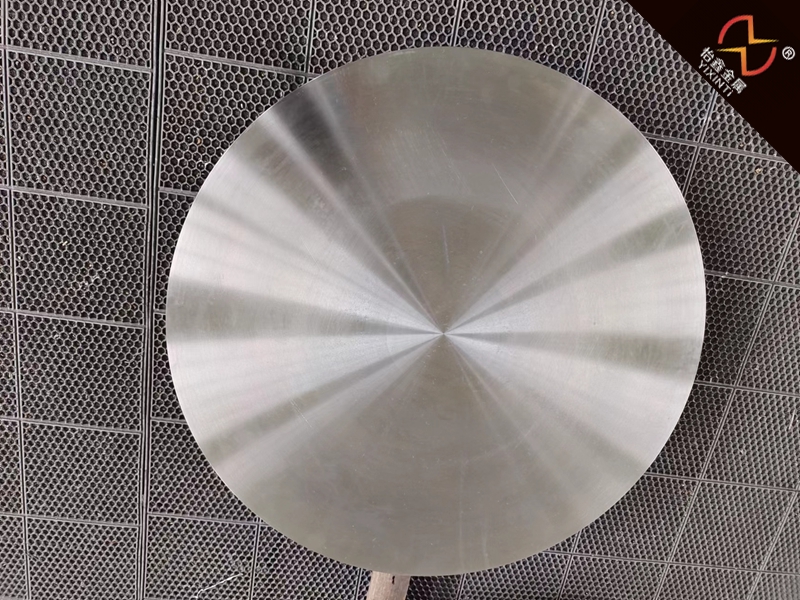

  • Product Name: Titanium Disc
  • Grade: GR.F-9
  • Condition: M
  • Dimensions(mm): φ600*40
  • Standard: ASTM B381
  • Fields: Aerospace, industrial, military, medical
Get A Quote

Product Description

Yixin uses the equipment press forging production of titanium disc, available grades TC4, Gr5, Gr.F-9.

The company can provide different sizes of titanium cake, welcome new and old customers to consult.

Chemical Composition

Location Ti / Al V Fe O C N H Others
Each Total
Standard / 2.5-3.5 2.0-3.0 ≤0.25 ≤0.15 ≤0.08 ≤0.03 ≤0.015 ≤0.10 ≤0.40
Top Remainder / 2.92 2.54 0.182 0.110 0.012 0.016 0.0006 ≤0.10 ≤0.40
Bottom Remainder / 2.92 2.35 0.138 0.130 0.015 0.017 0.0006 ≤0.10 ≤0.40

Yixin

Test report: Delivery List, UT Test Report, Delivery Photos, Product Quality Certificate, Third Party Test Report (optional).

Size range: According to customer drawings for processing

Mode of Delivery: Express transportation, Logistics transportation, Customer pickup.

Product packing: wooden case packing.

If you have special needs, you can explain with the salesman remarks, the company’s complete process system to ensure the final qualified delivery of products.

Gr.F-9 Titanium Disc Tensile Test

Tensile Test Condition Tensile Strength（MPa） Yield Strength（MPa）

Elongation

（%）

Reduction

of Area（%）

Bending

Inspection（mm/m）

 Micro Structure Inspection
M Standard ≥620 ≥483 ≥15 ≥25 / OK
L 705 613 20.5 47 /
