General Information

  • Product Name: Titanium Square Disc
  • Grade: Gr. 23
  • Condition: M
  • Dimensions(mm): 140*130*16
  • Standard: ASTM F136
  • Fields: Medical
Get A Quote

Product Description

This specification (ASTM F136) covers the chemical, mechanical, and metallurgical requirements for wrought annealed titanium-6 aluminum-4vanadium ELI (eatra low interstitial) alloy to be used in the manufacture of surgical implants.

Yixin Titanium is committed to providing good quality and high quality Gr23 titanium square disc  for the surgical implants, to provide customers with satisfactory products.

Chemical Composition

Location

 Ti / Al V Fe O C N H Others
Each

Total

Standard

 / 5.5-6.5 3.5-4.5 ≤0.25 ≤0.13 ≤0.08 ≤0.05 ≤0.012 ≤0.1

≤0.4

Top

 Remainder / 6.09 4.1 0.18 0.085 0.013 0.007 0.0009 ≤0.1 ≤0.4

Bottom

 Remainder / 6.22 4.21 0.19 0.088 0.02 0.007 0.0007 ≤0.1

≤0.4

Yixin

  • The Size of Square Disc: 140*130*20    140*130*18    140*130*16
  • Test report: Delivery List, UT Test Report, Delivery Photos, Product Quality Certificate, Third Party Test Report (optional),
  • Mode of Delivery: Express transportation, Logistics transportation, Customer pickup,
  • Product packaging: Wooden case packing, carton packing, simple packing.

Gr.23 Titanium Square Disc Tensile Test

Tensile Test

Sample Condition

 Tensile Strength（MPa） Yield Strength（MPa）

Elongation

（%）

Reduction

of Area（%）

Bending

Inspection（mm/m）

Micro Structure Inspection

M

 Standard ≥860 ≥795 ≥10 ≥25 /

OK

L

 879 797 14.5 38 / /

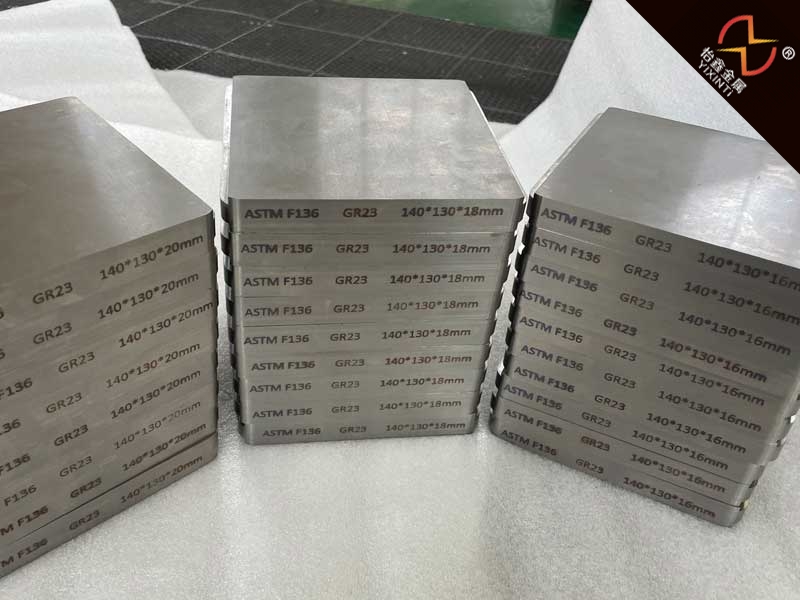

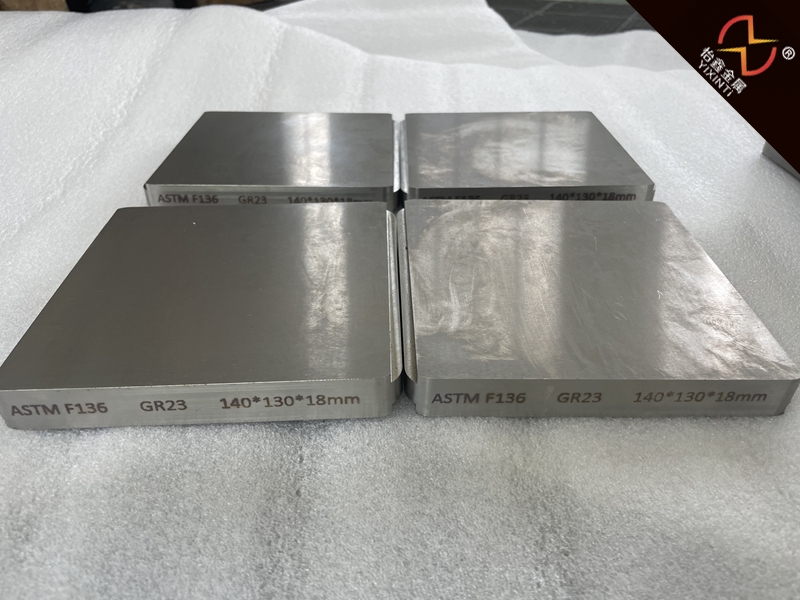

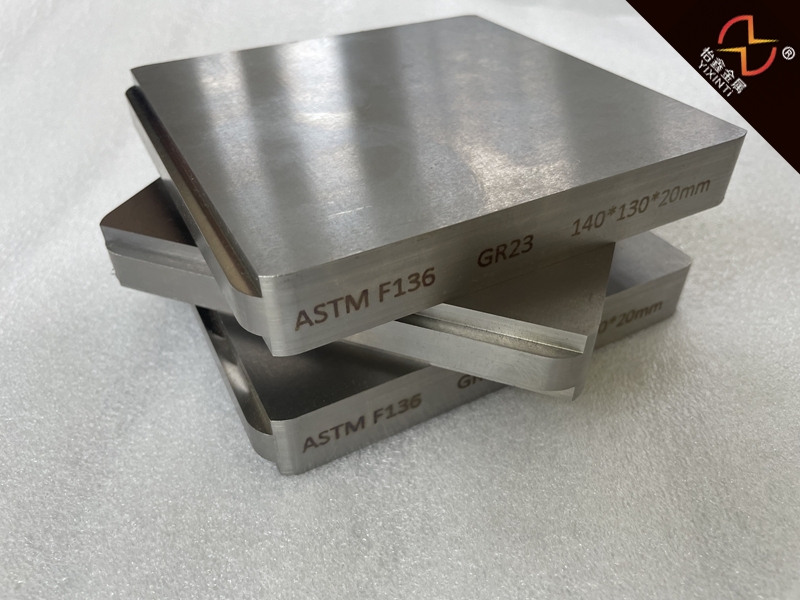

Product Picture
